What Is Vacuum Casting? Uses, Specs & Comparisons

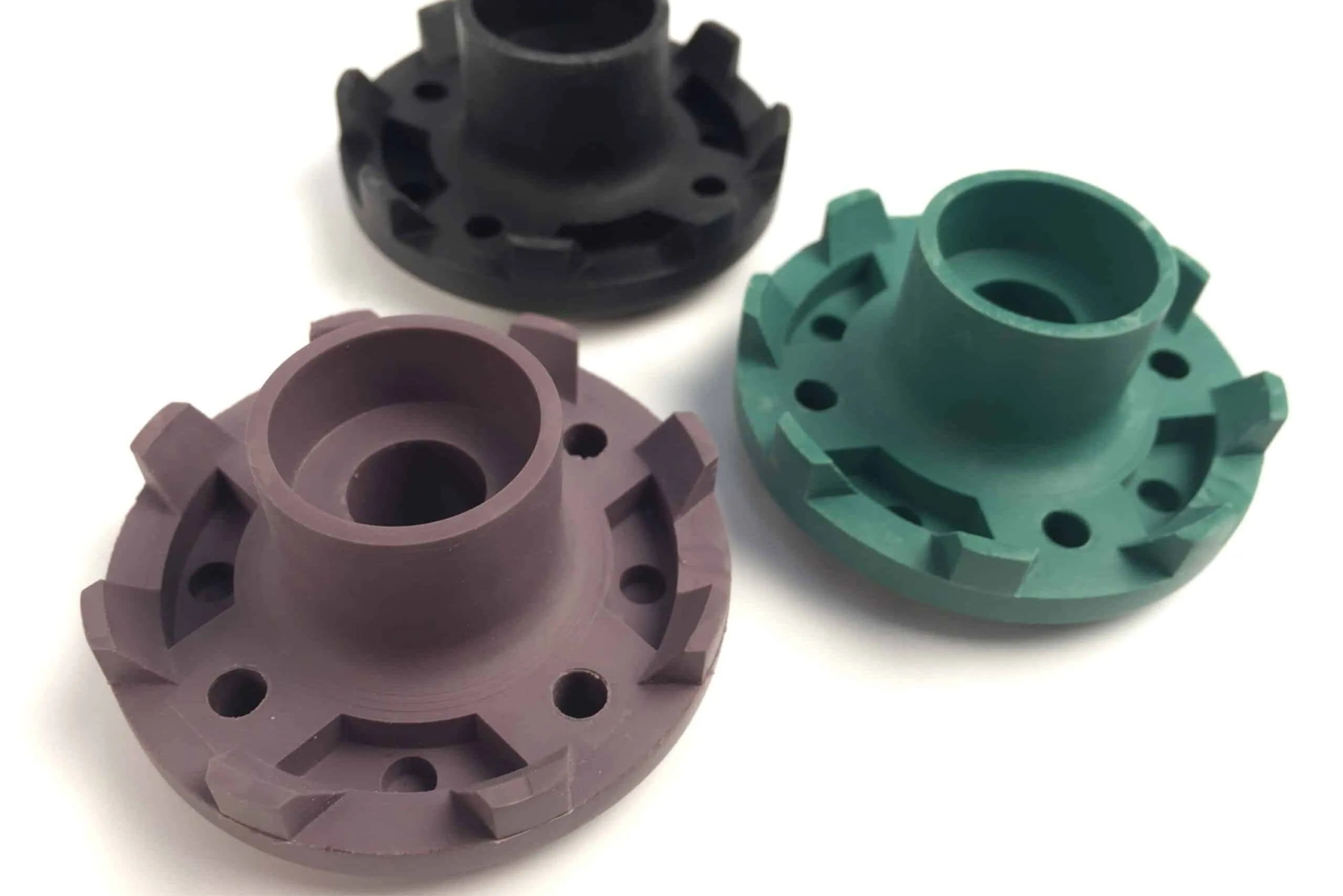

Vacuum casting (urethane casting/vacuum duplication) produces prototypes or small-series plastic parts (typically 5 to 50 pieces) with a quality comparable to injection molding. It’s a cost-effective alternative to injection molding, as it does not require expensive steel tooling.

This method allows the production of aesthetic parts with good mechanical properties and high dimensional accuracy. It is commonly used in industries such as automotive (intake manifolds, exhaust systems, body panels), consumer products (toys, sports equipment), and electronics, particularly for the production of housings, battery casings, and cell holders.

What is Vacuum Casting?

Vacuum casting involves pouring liquid plastic into a silicone mold, then curing it in an oven. A vacuum chamber removes trapped air, ensuring complete cavity filling and bubble-free parts.

The process supports complex shapes, undercuts, and insert overmolding, offering excellent design flexibility. It’s ideal for pre-series parts with appearance and performance close to injection-molded components—a valuable step before mass production.

However, vacuum casting has limits. Manual operation reduces dimensional accuracy, throughput, and repeatability, making it less scalable than automated methods.

Advantages	Limitations
High design flexibility: supports complex shapes, undercuts, overmolding	Manual process: not suited for large-scale production
Injection-like quality: good aesthetics, fine details, and mechanical strength	Slower than CNC machining or 3D printing
Low cost for short runs: no steel tooling required	Lower dimensional precision and stability compared to CNC or injection molding
Wide material range: rigid/flexible, transparent, RAL-colorable resins	Possible visual flaws (e.g., gate marks, release gloss)
Multiple finishes available: polishing, painting, metallization

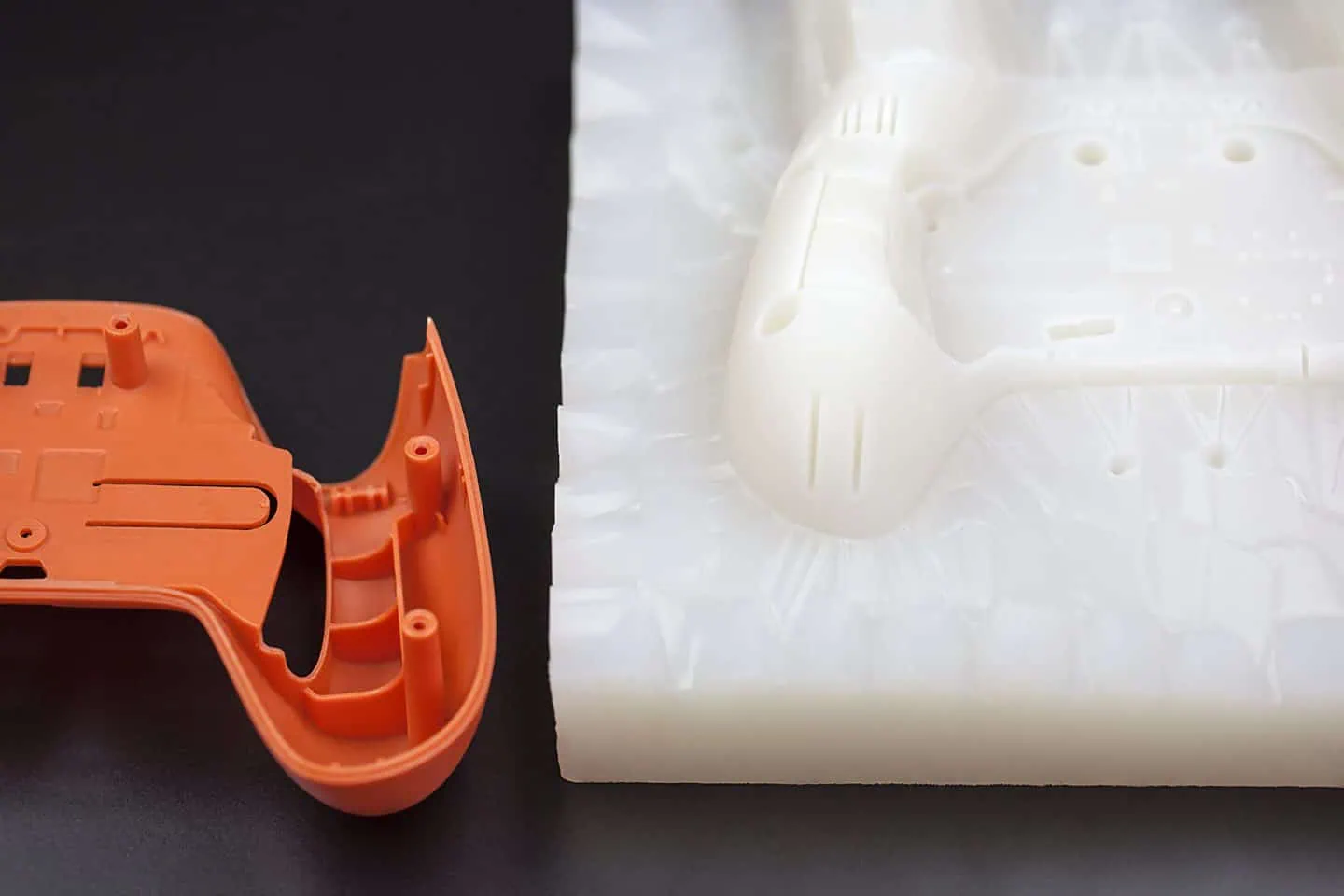

Vacuum cast part next to its silicone mould

Technical Specifications of Vacuum Casting

Vacuum casting uses a vacuum to evacuate air from the mold, resulting in smooth surface finishes and minimal defects.

Below are general specifications for the process:

Specification	Details
Materials	Select materials based on final use case: rigid (for enclosures), flexible (for seals), or transparent (for visual inspection parts). Pigment resins using RAL shades for visual prototypes.
Lead time	10–20 days
Design flexibility	Take advantage of vacuum casting’s design freedom to test non-uniform wall thicknesses, soft curves, and aesthetic detailing without tooling constraints.
Minimum wall thickness	Maintain a wall thickness of at least 1.5 mm to ensure full cavity filling and avoid deformation. You can reduce to 0.75 mm in non-load-bearing areas, but expect a higher risk of warping.
Undercuts	Design undercuts with care. Vacuum casting can demold simple undercuts, but complex ones increase mold wear and risk tearing. Add inserts or use parting lines to simplify.
Quantity per mold	Typically 1 to 20 parts
Surface finish	Choose a glossy finish to highlight geometry or a matte texture to reduce reflections—both are achievable without post-processing.
Additional options	Use insert overmolding to simulate final assemblies or test part fit before investing in injection tooling.

Tolerance values in vacuum casting depend on part dimensions and design complexity. The table below provides example tolerances based on various dimension ranges (the values provided are illustrative):

Dimensions (mm)	0 — 25	25 — 50	50 — 75	75 — 100	100 — 125	125 — 150
Tolerance (mm)	±0.3	±0.35	±0.4	±0.45	±0.5	±0.55

Pro Tip: For tight-fitting parts, keep tolerances below ±0.35 mm. Use vacuum casting for functional pre-series, then switch to CNC or injection molding for higher precision.

The prototypes of the silicone shell were manufactured with vacuum casting

Vacuum cast black walkie-talkies

Vacuum Casting Compared to Other Manufacturing Processes

The table below compares vacuum casting with other common manufacturing processes—injection molding, 3D printing, and CNC machining—to help you choose the most suitable option based on production needs, materials, lead time, and cost-efficiency.

	Vacuum Casting	Injection Moulding	3D Printing	CNC Machining
Description	Small batches of detailed parts resembling production quality	Mass production of highly detailed plastic parts	Rapid prototyping and complex geometries with minimal tooling	High-precision parts from metal or plastic, suitable for both prototyping and production
Optimal Quantity Range	1 – 100	50 – 1,000,000	1 – 100	1 – 100
Lead Time (available at Xometry)	20 days	38 days	3 days	7 days
Maximum Part Size (available at Xometry)	2500 × 2200 × 1800 mm	1289 × 1910 × 1006 mm	900 x 900 x 600 mm	2000 x 750 x 600 mm
Mould Life	1 – 20 shots	10,000 – 1,000,000 shots	–	–
Material Selection	Rigid plastics (ABS-like, PMMA-like, PP-like, PC-like), rubber-like plastics	Any thermosets/ thermoplastics	Plastics (PLA, ABS, PETG, Nylon, PC, etc.), resins, metals (aluminium, steel, titanium), and composites (carbon-fibre reinforced)	Metals (aluminium, steel, titanium, brass), plastics (POM, PTFE, ABS, PC, PMMA, Nylon), and composites
Prototyping	⭐⭐	⭐	⭐⭐⭐	⭐⭐⭐
High-Volume Production	⭐	⭐⭐⭐	⭐	⭐⭐
Part Design Complexity	⭐⭐	⭐⭐⭐	⭐⭐⭐	⭐⭐⭐
Standard Surface Finish	⭐⭐⭐	⭐⭐⭐	⭐⭐	⭐⭐⭐
Post-Processing	No	No	Yes	Yes
Cost of Design Mistakes	Low	High	Low	Medium
Advantages	• Excellent for short production runs and detailed prototypes with fast lead times • Ideal for creating high-quality surface prototypes, such as robotic components or lenses, making it perfect for professional product demonstrations or exhibition samples where aesthetics are crucial	• High repeatability for consistent part quality • Ideal for large production volumes • Extensive material options to suit diverse applications • Ability to meet custom colour requirements, ensuring precise tones	• No tooling costs • Fast iteration • Great for custom geometries	• High precision • Excellent surface finishes • Supports diverse materials
Disadvantages	• Limited mould lifespan, typically up to 20 parts	• High upfront investment in mould tooling • High costs for mould modifications or improvements, particularly if the design is not frozen before mould production • Limited flexibility for highly complex or intricate designs	• Slower production for large batches • Limited material properties	• High cost per part for large volumes • Slower for intricate designs

Vacuum Casting vs. Injection Molding

Use vacuum casting when you need 5–100 parts with production-like quality but want to avoid the cost and delay of steel tooling. Injection molds can cost €5,000–€50,000+, while vacuum casting only needs a master pattern and silicone mold. It’s ideal for validation, marketing, or pilot runs where fast iteration and low upfront costs matter more than tight tolerances.

Switch to injection molding once your design is final and you’re producing hundreds to millions of parts. It offers high repeatability, precise tolerances, and low part costs at scale—but demands more time, money, and commitment upfront.

Tip for designers: Start with vacuum casting to test form, fit, and finish. Switch to injection molding once your geometry, materials, and tolerances are locked in.

Vacuum Casting vs. 3D Printing

3D printing is your go-to for rapid iterations, complex internal features, and single-unit prototyping. It’s fast, tool-free, and works well early in development—especially when functional performance isn’t critical yet.

Vacuum casting comes into play when you need multiple units with production-grade appearance and mechanical properties. It offers better surface finish, material consistency, and can simulate injection-molded parts more closely.

Tip for designers: Use 3D printing to explore ideas and refine geometry. Move to vacuum casting to produce realistic samples for user testing, mechanical validation, or customer demos.

How Vacuum Casting Works

Vacuum casting uses a silicone mold and a vacuum chamber to create detailed plastic or rubber parts with smooth surfaces and minimal defects.

Here’s a step-by-step breakdown of the process:

1. Create a 3D Model

As with most modern manufacturing processes, the first step is to design a 3D model of the part.

Use CAD software such as AutoCAD, SolidWorks, or CATIA.
To get optimal results, follow injection molding design rules, including draft angles, uniform wall thickness, and allowances for undercuts.

2. Build the Master Pattern

Produce a master pattern from the 3D model using SLA 3D printing or CNC machining.

While CNC was traditionally used, it still offers higher dimensional accuracy, especially for pre-series parts.
3D printing speeds up prototyping and reduces cost during early design validation.

3. Create the Silicone Mold

Place the master pattern in a casting box along with any cores, inserts, and gating systems.

Pour liquid silicone over the pattern to capture its geometry and surface details.
Cure the mold in an oven at 40°C for 8 to 16 hours, depending on its size.
Once cured, cut the mold open along the parting line to reveal the negative cavity.
Apply a mold-release agent to prevent sticking and avoid surface flaws.

4. Mix and Pour the Resin

Prepare a two-component polyurethane resin and add any required pigments.

Preheat the mixture to ~40°C for better flow.
Install the mold in the vacuum chamber and connect the pouring gates.
Mix and deaerate the resin under vacuum for 50–60 seconds to remove air bubbles.
Apply vacuum to the mold so gravity fills the cavity evenly without trapped air.

5. Demold the Parts

Cure the filled mold in an oven for 1 to 4 hours, depending on the material.

After curing, remove the hardened part from the mold, then trim gates and perform any needed finishing.
A single silicone mold typically produces 10 to 20 parts, depending on the geometry and resin used.

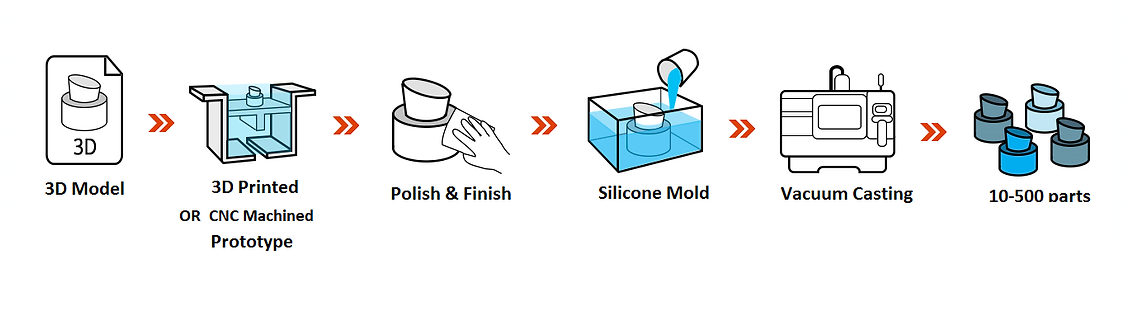

Illustration of the vacuum casting process (Source: ProtoZone)

Source Your Vacuum Cast Parts at Xometry

Vacuum casting is a versatile and efficient process for producing detailed plastic or rubber parts in low volumes. It’s ideal for prototypes, functional parts, and high-quality presentation models, such as exhibition pieces or customer samples.

At Xometry, you can get a quote for your vacuum cast parts instantly. Simply upload your 3D file to our Instant Quoting Engine, configure your specifications, and receive a quote in seconds—no waiting, no emails, no back-and-forth.

Ready to try vacuum casting for your next prototype?

Get an Instant Quote
